THE
PARAMOTIO N.
ELECTRICIZED AT EQUAL LEVEL!
The
ParaMotion.
ELECTRIFYING
AT EYE LEVEL!
The new ParaMotion® is an all-round talent, flexible in use whether for sports like golf or shooting, at work on the farm or instructor in a climbing garden, at leisure off the beaten track, always ready for adventure. In the 2nd generation, the ParaMotion presents itself in a new sporty appearance and technically with state-of-the-art technology and many beneficial features. PowerBaseTec’s enduring and powerful development promises new perspectives at eye level! Are you ready for the next level? _
Info

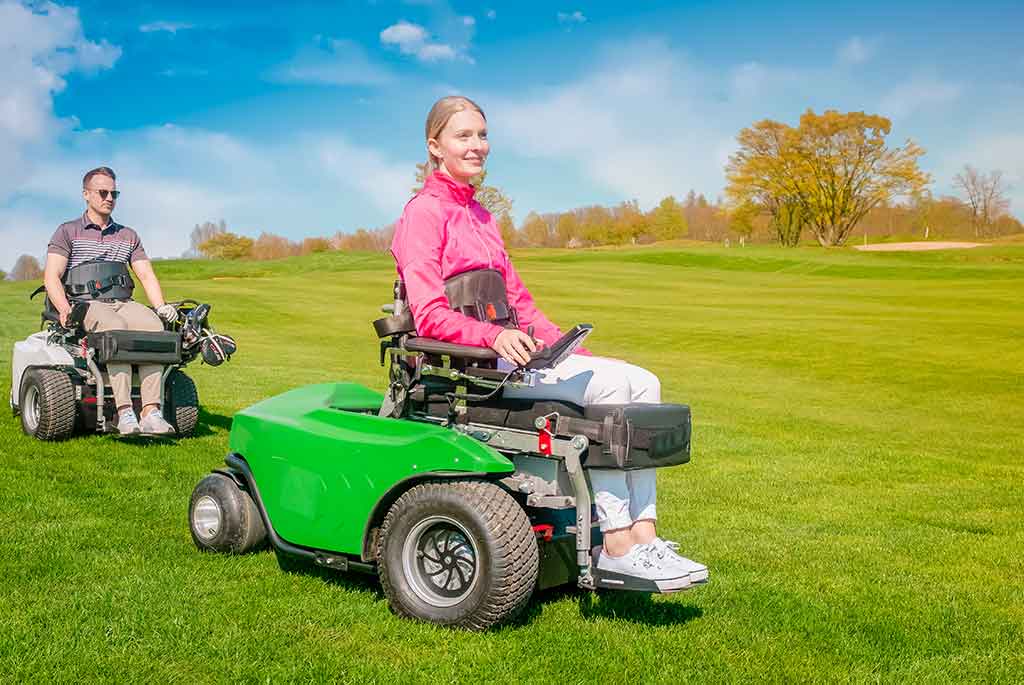

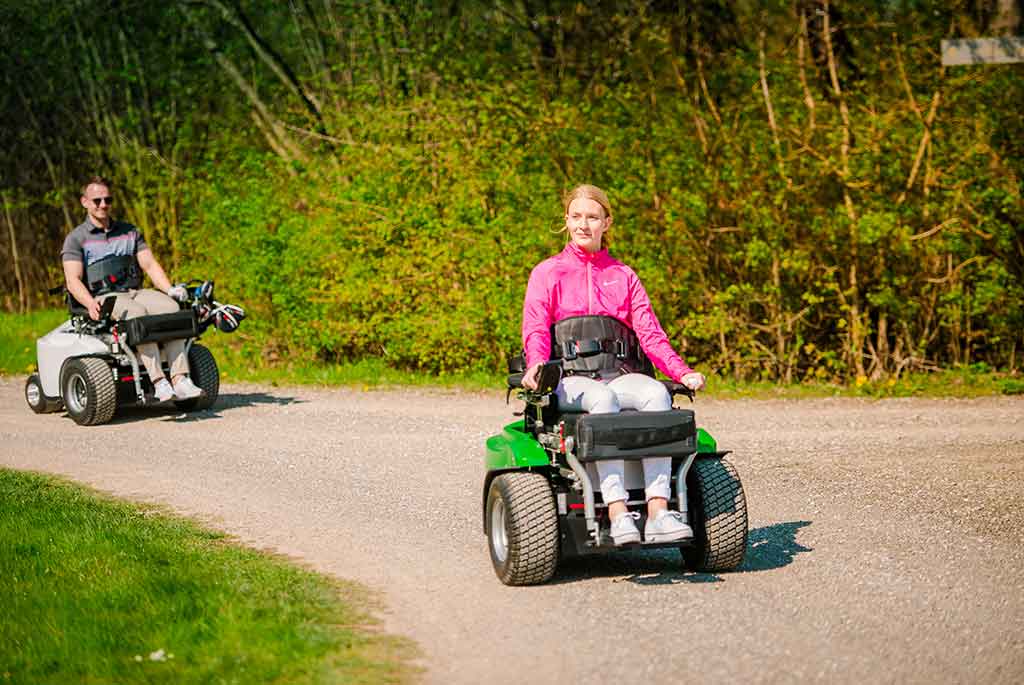

The ParaMotion is particularly characterized by its off-road mobility, for example for use on the golf course, at the fishing lake, on the farm or for family trips into the countryside.
The powerful drive system, which is supplied by 2 maintenance-free batteries in gel technology, each with 12 V and 110Ah (C20), enables ranges of up to 25miles/40km.
The right tires allow the ParaMotion good traction, overcoming obstacles and safe driving characteristics.
The ParaMotion is steered by the differential control(PWM) of the drive wheels. The double rear wheel rotates free around the steering axis, which makes the ParaMotion easy to maneuver and allows to turn on the spot. The ParaMotion is controlled via a 120A R-Net modul. The ParaMotion I/O is operated via a R-NET Joystick(CJSM2) its customizable and displays the current status of Battery, Profile,Mode and speeds
Data is transmitted via a bus system. The programmability of the R-Net controller can be adapted to the user’s personal needs.
Equipment

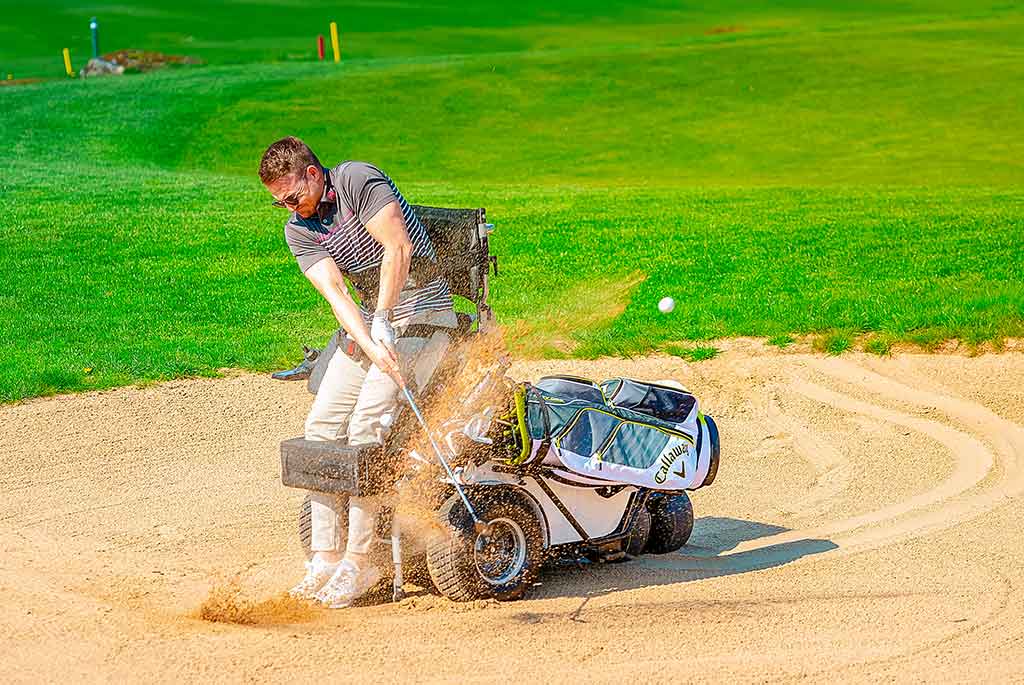

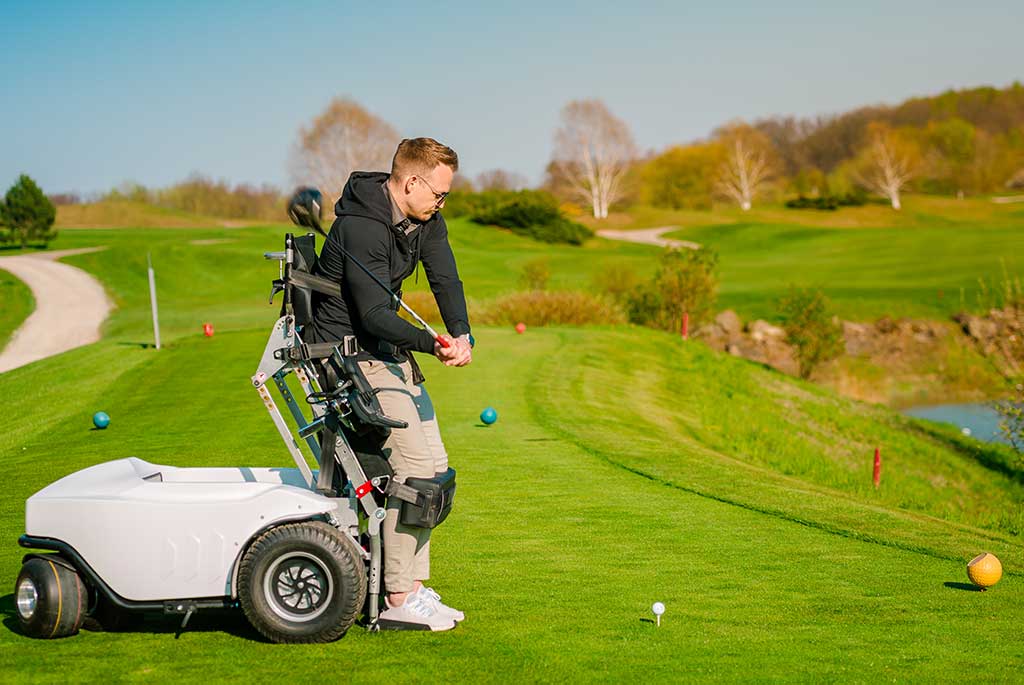

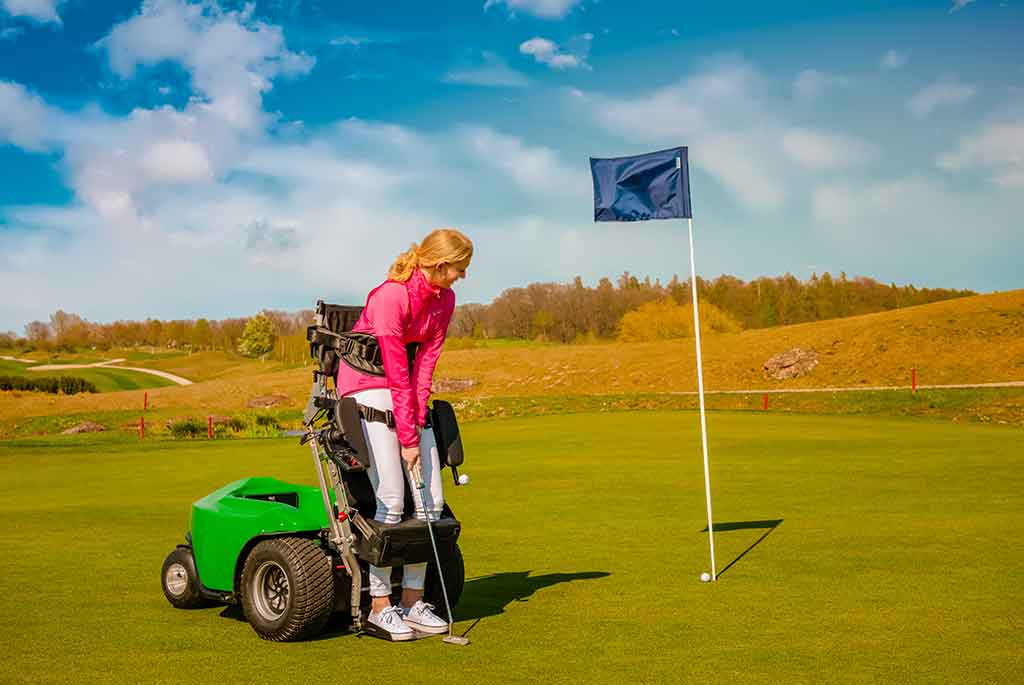

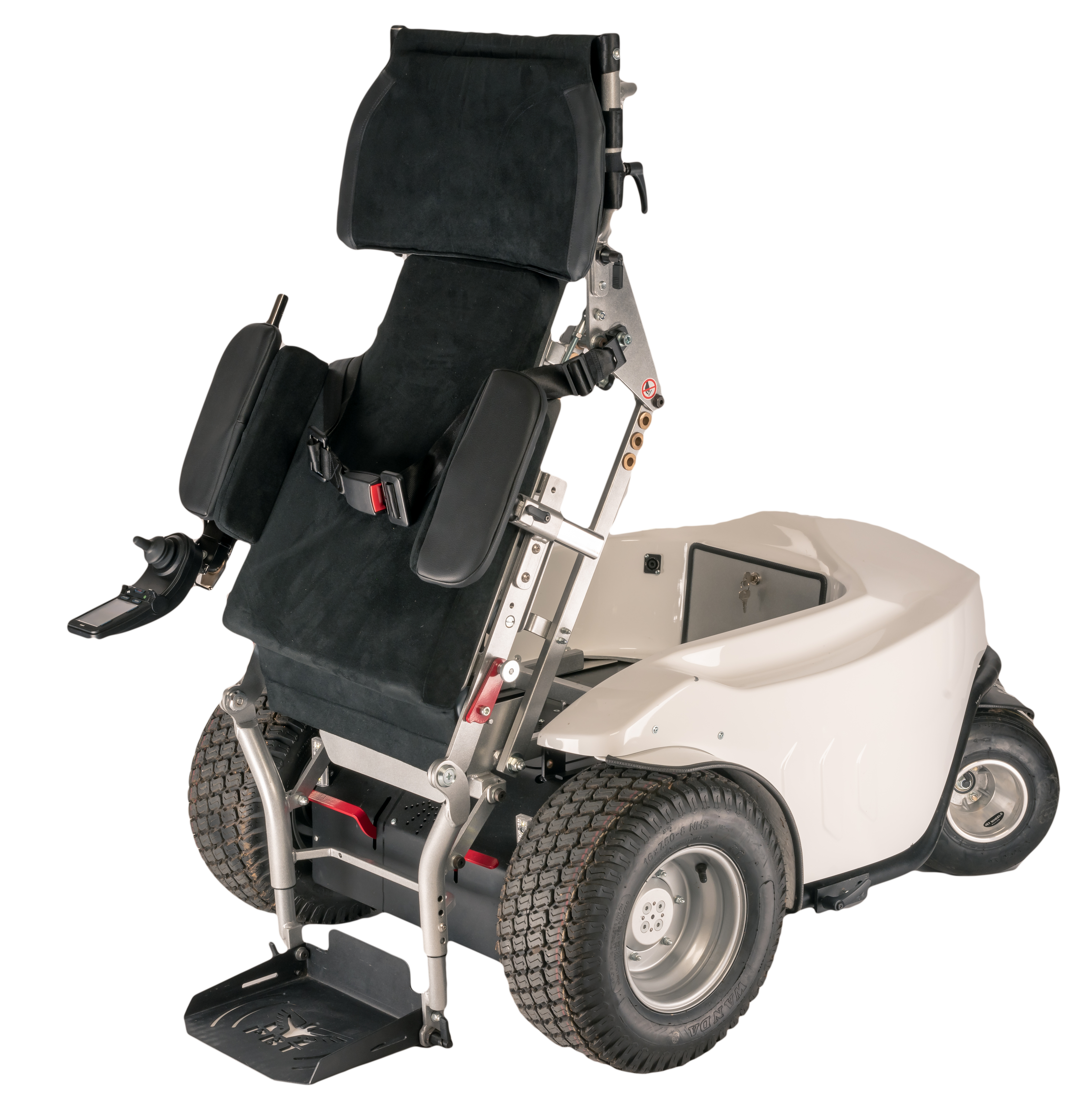

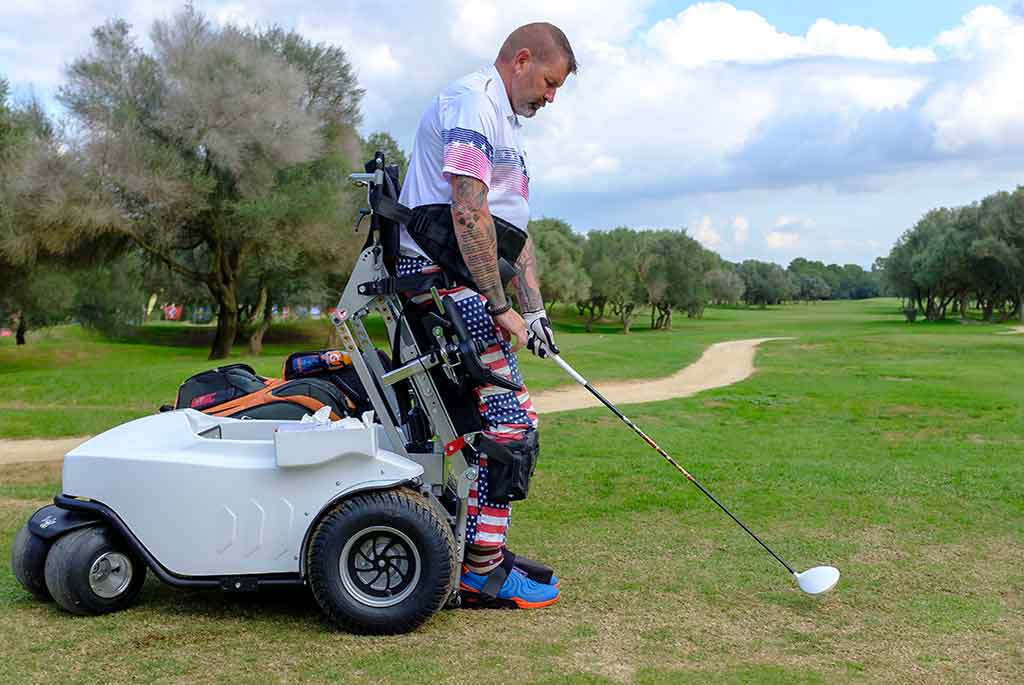

We guarantee your optimal position in relation to the ball with a patented stand-up unit and several individual seat adjustment, Furthermore:
-
Off-road capable of up to 30% slopes
-

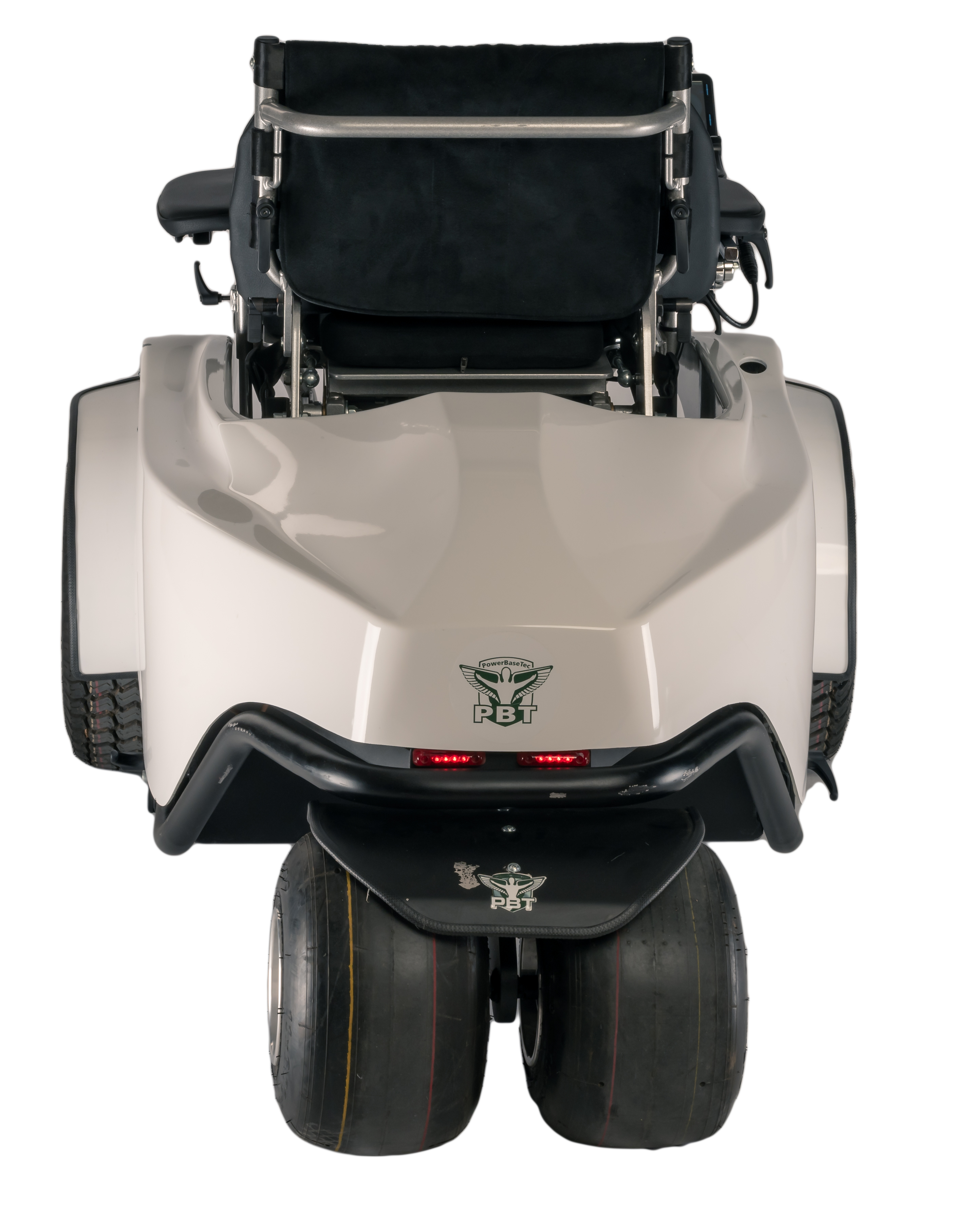

Stable and safe thanks to the double rear wheel and low center of gravity.
-
with up to 10 km / h to the next tee
-
comfortable thanks to seat suspension and hand-sewn quality upholstery
-
thanks to a big lockable trunk enough storage space for you and your companions.
- up to 40 km range
We give the ParaMotion comfort, power and design, it gives you individuality and perspectives.

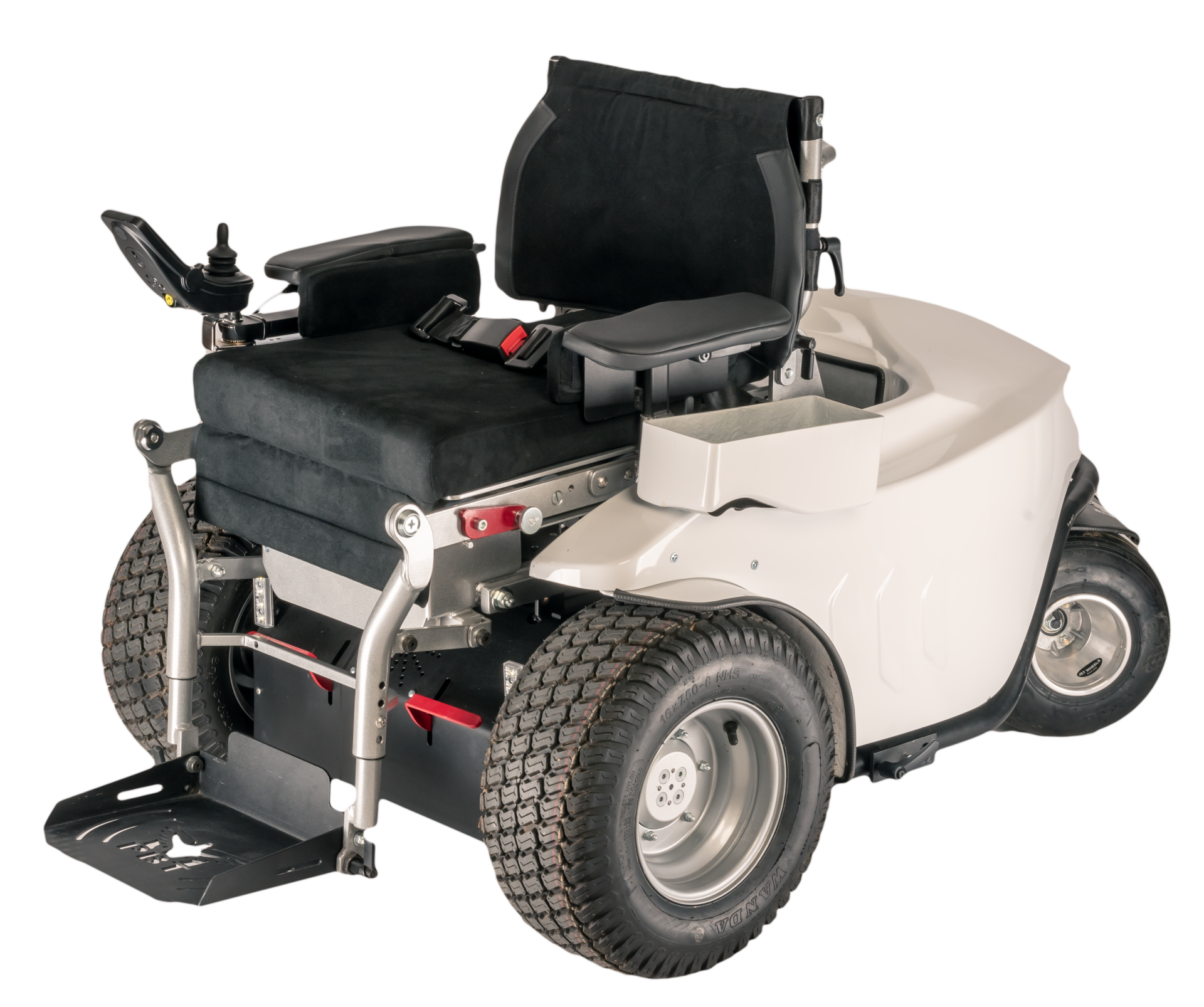

• New, modern design with even more personalization options.
• New decubitus prophylaxis through innovative seat plate displacement
• Comfortable seat suspension. Weight-dependent.

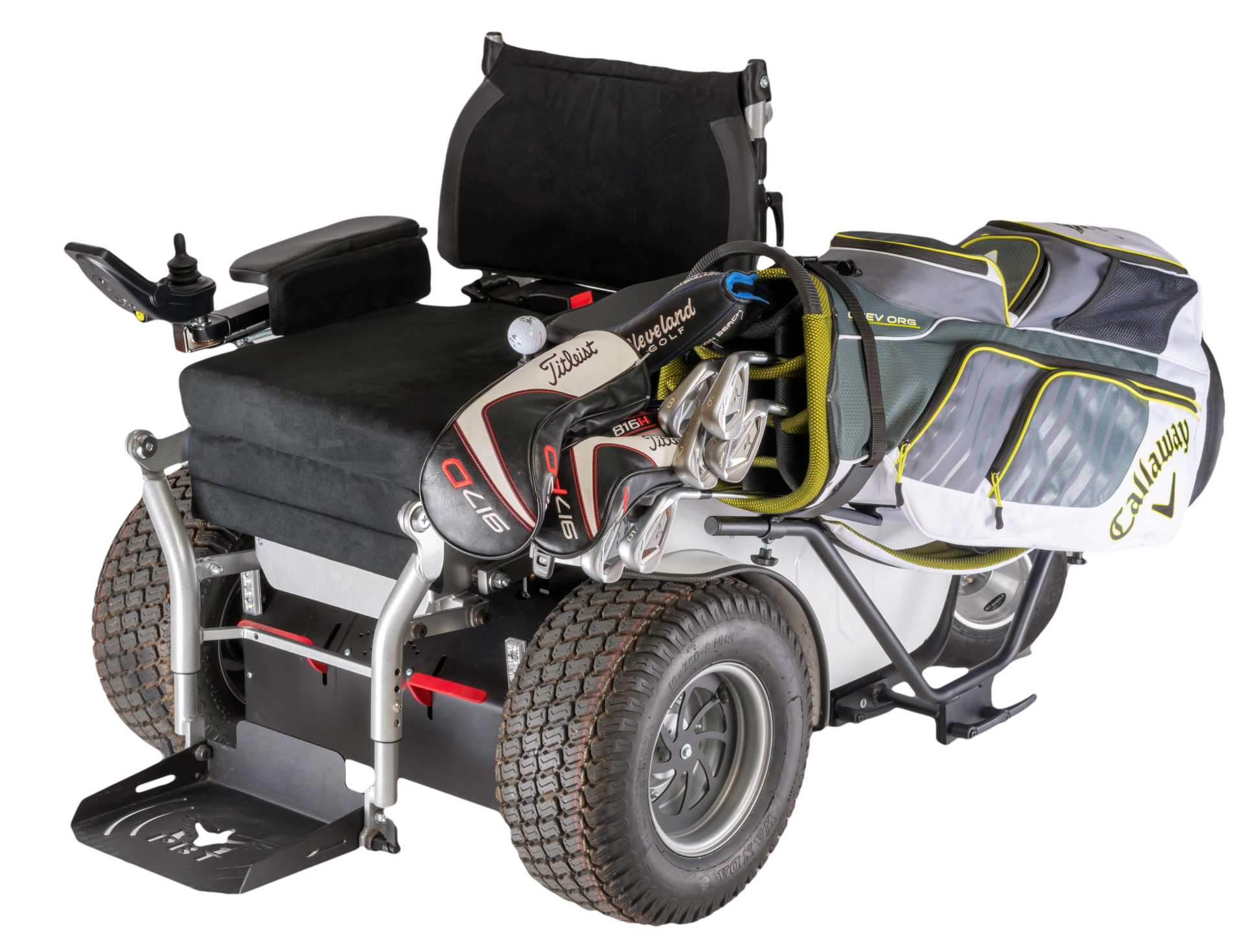

• Golf bag holder can be mounted on both sides in a stable, easily to attach.
• Never swap fuses again, thanks to resetable main fuse!
* LED Light front / rear.
• Revised footboard with adjustable inclination, flip up for transport.
• All positions adjustable for people with a height of 120 cm to 200 cm.
• New, stronger engine & batteries.
• Individually adjustable control panel, swivelling away and mountable on both sides
• lockable storage compartment, with Battry monitor & 12V/USB socket for mobile phone and/or other devices.
We give the ParaMotion comfort, power and design, it gives you individuality and perspectives.
Optional equipment
- Golfbagholder
- Handle ,,golfball” opposite the control panel
- different covers for the rims, drive in style!
- “Kids” equipment (kids footrest, upholstery in different sizes ,different knee/waist-belts)

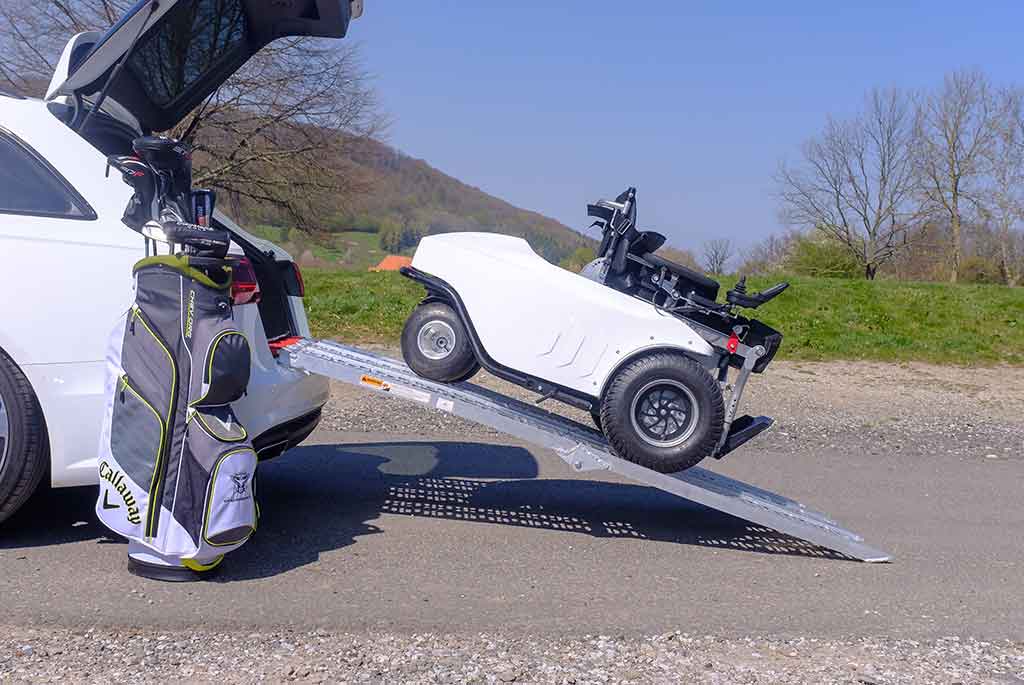

- Ramp set (lightweight and foldable)
- Transport protection cover
- Storage box
- Storage box with cup holder
- Two-tone paintwork
- luggage rack
It’s your turn!
Technical data
|
Seat width: |
30-56cm |
|
Seat depth: |
43-60 cm (3.1 cm grid) |
|
Seat: |
50-65 cm |
|
Seat inclination: |
0 ° |
|
Armrest height: |
15.5-24.5cm (infinitely adjustable) |
|
Arm length: |
28 cm |
|
Lower leg length: |
38-44 cm*(2cm grid) |
|
Back height: |
34-44.5 cm (infinitely adjustable) |
|
Back angles: |
1 °-90 ° (18 ° grid) |
|
Overall width: |
90 cm |
|
max. Total height: |
101 cm (in seat position-depending on the position of the backrest) |
|
Total length (for forward drive): Total length (pack size): |
170 cm 137.5 cm |
|
Radius turning circle: |
1900 mm |
|
Tire size front (drive wheel): Tyre size at the back (steering wheel): |
390 mm (16×7.5-8) 275 mm (11×6.00-5) |
|
Tyre air pressure front (drive wheel): Tyre air pressure at the rear (steering wheel): |
Adding the air pressure to the tire coat according to the indication to avoid injury or damage to the product: (Minimally 1.0 bar, maximum 1.9 bar) • Steering wheel: 1.5 bar (minimum 1.0 bar, maximum 3.0 bar) |
|
Weight: |
< 190 kg * * |
|
max. Payload: |
140 kg |
Driving data |
|
|
Speed |
10.0 km/h |
|
Maximum safe inclination |
Nominal slope (in seat position) *: 17 ° (30%) Side tilting stability |
|
Overwinable obstacles |
100 mm |
|
Range (off-road, golf course) * * |
approx. 40 km |
|
Braking distance (EN 12184:2009) * * * |
at 10.0 km / h[6,2 mph] : 2100 mm (on the horizontal); 4200 mm (on the slope) |
|
Temperature |
-15°C to 40°C |
|
Transport and storage temperature |
-15°C to 40°C |
The ParaMotion Live
Info
The ParaMotion is particularly distinguished by its off-road capability, for example for use on the golf course. The powerful drive system, which is powered by 2 lead gel batteries with 12 V and 96 Ah each of the latest generation, and the matching tire enable the ParaMotion to overcome obstacles and maintain safe driving characteristics.
The ParaMotion is steered by the differential control(PWM) of the drive wheels. The rear wheel rotates freely around the steering axis, which makes the ParaMotion easy to maneuver The ParaMotion is controlled by the R-Net controller. The ParaMotion I/O is operated via a R-NET Joystick(CJSM2) its customizable and displays the current status of Battery, Profile,Mode and speeds
Data is transmitted via a bus system. The programmability of the R-Net controller can be adapted to the user’s personal needs.
Equipment
• New, modern design with even more personalization options.
• New decubitus prophylaxis through innovative seat plate displacement
• Comfortable seat suspension. Weight-dependent.
• Golf bag holder can be mounted on both sides in a stable, easily to attach.
• Never swap fuses again, thanks to resetable main fuse!
* LED Light front / rear.
• Revised footboard with adjustable inclination, flip up for transport.
• All positions adjustable for people with a height of 120 cm to 200 cm.
• New, stronger engine & batteries.
• Individually adjustable control panel, swivelling away and mountable on both sides
• lockable storage compartment, with Battry monitor & 12V/USB socket for mobile phone and/or other devices.
Optional equipment
+ Golfbagholder
+ Handle opposite the control panel
+ different rims
+ “Kids” Equipment
+ lightweight, foldable ramps (alu)
+ Transport protection cover
+ storagebox
+ storagebox with beverage holder
+ Painting two-tone
+ Luggage rack
Technical data
|
Seat width: |
30-56cm |
|
Seat depth: |
43-60 cm (3.1 cm grid) |
|
Seat: |
50-65 cm |
|
Seat inclination: |
0 ° |
|
Armrest height: |
15.5-24.5cm (infinitely adjustable) |
|
Arm length: |
28 cm |
|
Lower leg length: |
38-44 cm*(2cm grid) |
|
Back height: |
34-44.5 cm (infinitely adjustable) |
|
Back angles: |
1 °-90 ° (18 ° grid) |
|
Overall width: |
90 cm |
|
max. Total height: |
101 cm (in seat position-depending on the position of the backrest) |
|
Total length (for forward drive): Total length (pack size): |
170 cm 137.5 cm |
|
Radius turning circle: |
1900 mm |
|
Tire size front (drive wheel): Tyre size at the back (steering wheel): |
390 mm (16×7.5-8) 275 mm (11×6.00-5) |
|
Tyre air pressure front (drive wheel): Tyre air pressure at the rear (steering wheel): |
Adding the air pressure to the tire coat according to the indication to avoid injury or damage to the product: (Minimally 1.0 bar, maximum 1.9 bar) • Steering wheel: 1.5 bar (minimum 1.0 bar, maximum 3.0 bar) |
|
Weight: |
< 190 kg * * |
|
max. Payload: |
140 kg |
Driving data |
|
|
Speed |
10.0 km/h |
|
Maximum safe inclination |
Nominal slope (in seat position) *: 17 ° (30%) Side tilting stability |
|
Overwinable obstacles |
100 mm |
|
Range (off-road, golf course) * * |
approx. 40 km |
|
Braking distance (EN 12184:2009) * * * |
at 10.0 km / h[6,2 mph] : 2100 mm (on the horizontal); 4200 mm (on the slope) |
|
Temperature |
-15°C to 40°C |
|
Transport and storage temperature |
-15°C to 40°C |
